📌 Definition
A vacuum leak test apparatus is used in pharmaceutical packaging to detect leaks in blister or strip packs by applying vacuum in a methylene blue solution, ensuring pack integrity and product protection.https://iampharmacist.com/sop-for-pharmaceutical-working-standards/
📊 Table Snippet (Data Type)
| Section | Description |
|---|---|
| Objective | Ensure proper operation of vacuum leak test apparatus |
| Scope | Applicable to packing area in production department |
| Responsibility | Operator (execution), Pharmacist (verification) |
| Accountability | HOD Production |
| Key Activities | Vacuum application, leak detection, sample evaluation, recording |
🔢 Step-by-Step SOP
- Check apparatus cleanliness
- Prepare methylene blue solution
- Place samples in desiccator
- Apply vacuum (15 in Hg, 30 sec)
- Hold for 2 minutes
- Release vacuum slowly
- Inspect tablets for blue coloration
- Record results and repeat if required
🔍 Introduction
Ensuring the integrity of blister and strip packaging is critical in pharmaceutical manufacturing. The vacuum leak test apparatus is a reliable method to detect packaging defects using methylene blue dye under controlled vacuum conditions. This SOP outlines standardized procedures to ensure consistent, accurate, and compliant leak testing in production environments.
🧠 Semantic Content Layer
Vacuum leak testing in pharmaceutical packaging involves placing blister packs in a desiccator filled with methylene blue solution and applying controlled vacuum pressure. Any breach in packaging allows dye penetration, indicating leakage. This method ensures product stability, compliance with GMP, and prevention of contamination.
1.0 OBJECTIVE
To define the procedure for operation of vacuum test apparatus.
2.0 SCOPE
Applicable to vacuum test apparatus used in packing area of production department.
3.0 RESPONSIBILITY
- Execution: Operator
- Checking: Production Pharmacist & above
4.0 ACCOUNTABILITY
HOD – Production / Designee
5.0 PROCEDURE
5.1 Operation
- Ensure apparatus cleanliness before use
- Prepare desiccator with:
- 1 L purified water
- ~5 mL of 0.1% methylene blue
- Place strips/blisters as per BPR
- Close lid properly
- Switch ON mains
Vacuum Application
- Apply vacuum up to 15 inches Hg for 30 seconds
- Hold vacuum for 2 minutes
- Release vacuum slowly
- Wait for 5 minutes

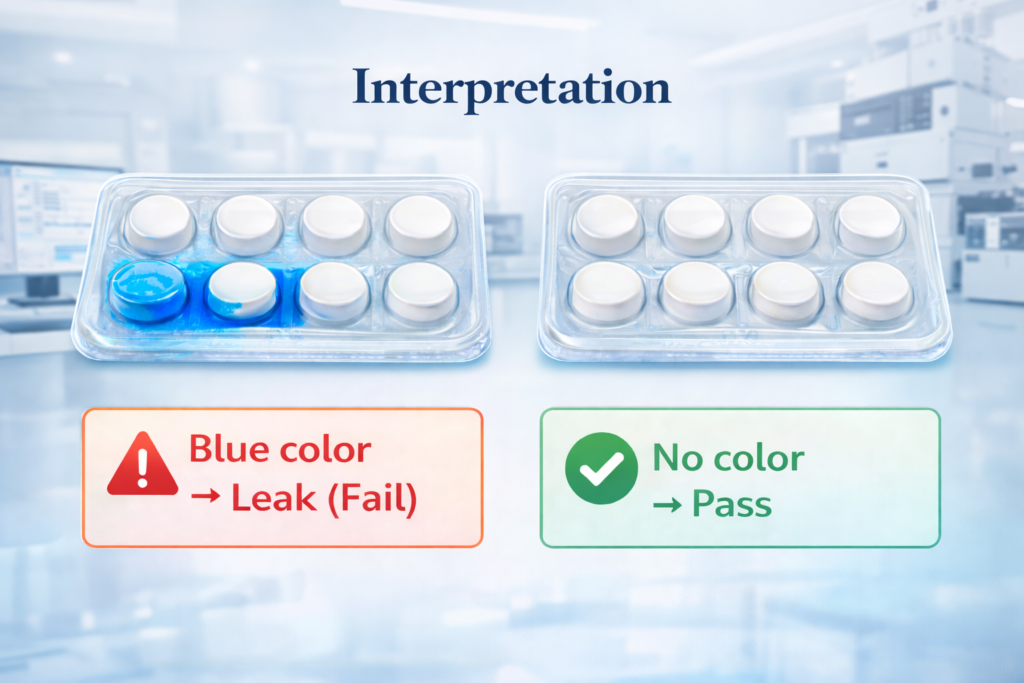

5.2 Inspection
- Remove samples and dry using cotton cloth
- Open strips/blisters
- Check for blue coloration on tablets
5.3 Re-testing & Actions
- Repeat test if failure observed
- Perform testing in presence of QA if required
- Adjust blister/strip machine if failures persist
- Re-test until satisfactory results obtained
- Rework failed batches
5.4 Calibration
- Verify vacuum gauge accuracy periodically
- Ensure vacuum level consistency (15 in Hg)
- Maintain calibration records
5.5 Cleaning
- Change desiccator water daily
- Clean apparatus after use
- Dispose tested tablets by dissolving in water
5.6 Documentation
- Record test results in BPR
- Maintain traceability of samples
- Document failures and corrective actionshttps://iampharmacist.com/sop-for-safe-destruction-of-pharmaceutical-samples/
6.0 ABBREVIATIONS
- SOP: Standard Operating Procedure
- BPR: Batch Packing Record
- QA: Quality Assurance
- HOD: Head of Department
❓ FAQs
1. What is a vacuum leak test apparatus?
A device used to detect leaks in blister packaging using vacuum and dye.
2. Why is methylene blue used?
It penetrates leaks, making defects visible.
3. What vacuum level is used?
15 inches Hg.
4. How long is vacuum applied?
30 seconds with 2-minute hold.
5. What indicates failure?
Blue coloration on tablets.
6. Why repeat the test?
To confirm accuracy and eliminate errors.
7. Who performs the test?
Operator, verified by pharmacist.
8. What happens to failed samples?
They are re-tested or batch is reworked.
9. Why is daily water change required?
To maintain test accuracy and hygiene.
10. Is calibration required?
Yes, to ensure vacuum accuracy.
